	TD 2U series Number：TD2150 Price：0.00 Hits：184 Time：2025-04-28 10:12:45 I want to order

Description

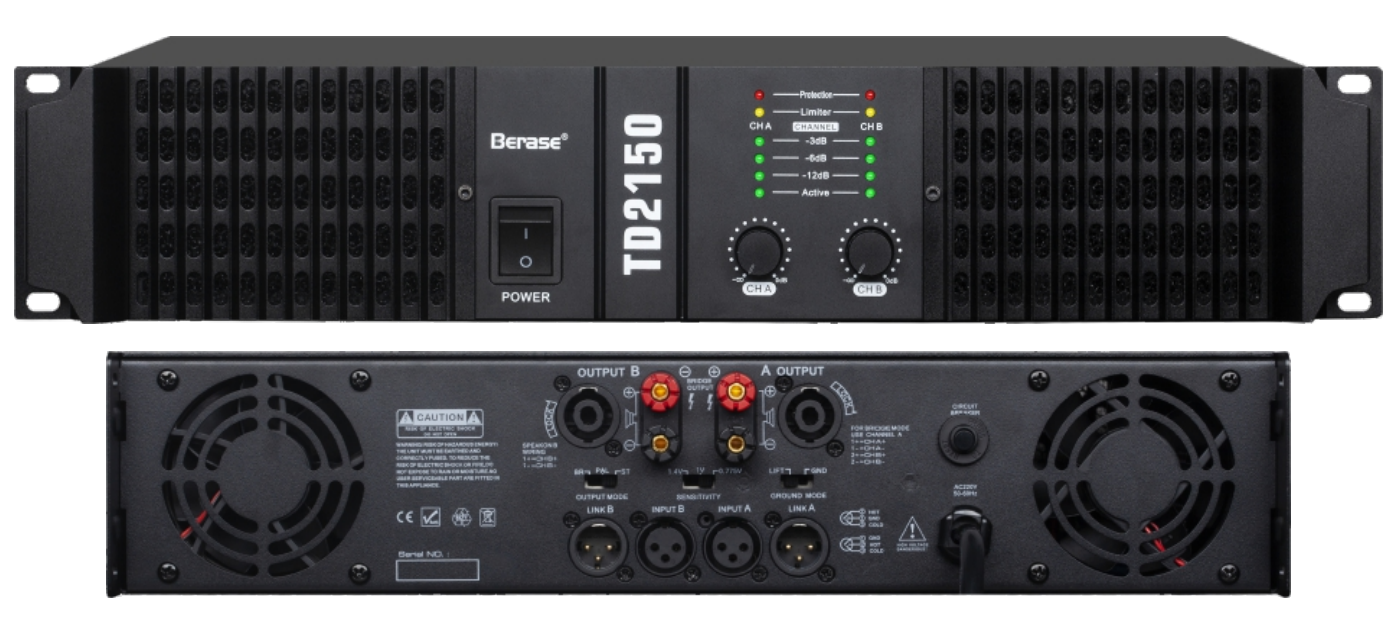

Model：TD series

Function：

Stereo/parallel/ bridge mode;
XLR input interface; XLR parallel output interface;
Speakon and terminal connector output interface;
2 gain control knobs ,1 power switch ,with LED indication of active ,signal ,clip and protect status;
Protection circuits to prevent short circuit, overload, power-on/off shock, output DC, over-temperature, peak amplitude limiting, etc.;
Soft start to avoid surge current impact; with the startup output amplitude increasing function;
Equipped with a large proportion of the radiator and a strong fan cooling , the wind speed is automatic adjusted.

Feature：
TD series products with advanced TD CLASS high efficiency power amplifier circuit, combined with high power copper wire ring transformer, a large number of good quality imported devices, efficient and automatic adjustment of cooling system and large proportion of radiator, with perfect protection circuit, is a safe, stable, broadband sound, low distortion, beautiful sound high-end professional power amplifier. Suitable for KTV, bars, party rooms, large performances, line array and other sound quality and high reduction of places.

Parameter：

Power and performance	TD2110	TD2130	TD2150	TD2180	TD2220
8 ohms Stereo	2*1100W	2*1300W	2*1500W	2*1800W	2*2200W
4 ohms Stereo	2*1650W	2*1950W	2*2250W	2*2700W	2*3300W
2ohms Stereo	2*2300W	2*2700W	2*3100W	2*3600W	2*4500W
8 ohms bridge	3300W	3900W	4500W	5400W	6600W
4 ohms bridge	4500W	5000W	5900W	7000W	8500W
Frequency respond	20Hz-20kHz, ±1dB
T.H.D	≤0.35%			≤0.5%
Slew rate	>20V/us			>30V/us
S/N rate	>102dB			>103dB
Channel crosstalk	< -72dB			< -73dB
Input sensitivity	0.775V/1V/1.4V
Imput impedence	10kΩ(unblance）/20KΩ(balance）
Output category	CLASS TD
NW（KG）
Dimension（WDH)	482mm432mm88mm			482mm490mm132mm
