Flagship product, Elaborate crafted. Professional multi-function preamp . It’s switching power supply design, which also has the function of Noise Gate, and it is more suitable for voltage unstable areas and conference projects

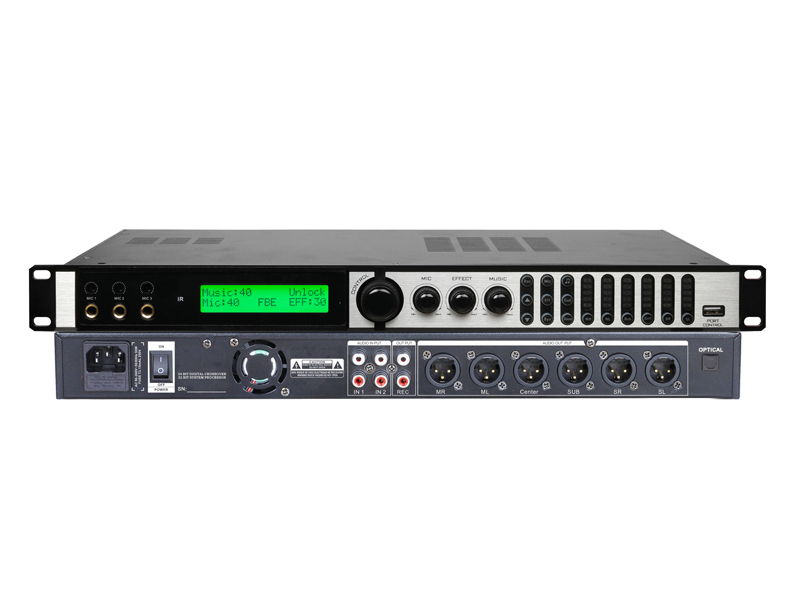

KX-9600 ●Adopt ADI chip designed , 40-Bit floating-point high-speed DSP processor , 48KHz sampling frequency / 24-Bit A/D and D/A transformed . ●The Music channel has 9 segments PEQ stereo equalizer ,and Identifyoptical digital input automatically . ●The microphone has A/B dual 15 segments PEQ adjustment separately , fully digital audio process system . Stereo DSP multiple digital reverb .The vocals are more professional ●Microphone mute setting , Noise Gate has 1-10 grade selection. Independent compress / limit designed ; Optional 2HZ~8Hz frequency shift feedback suppression .and "OFF"optioned . ●The effect channel has high/low pass ; Reverb and echo has 5 segments of PEQ respectively...etc . ●Each output channel has 7 segments of PEQ respectively , high/low pass adjusted , mixing ratio , polarity ,delay , compress / limit , gain function . ●Support VOD IR interface controller . ●Support RS232 connect to computer controller , comes with professional PC controlled software . ●It has RTA frequency spectrum display , to find the feedback point effectively to cancel the hawling . ●3 levels engineering password lock function ,The device lock level can be set by yourself accordingly. ●9 Groups system mode could be save , the turn on status is the data of the one which saved by last time .
Parameters MAX input electrical level for music： +14dBu（4V RMS） MAX output electrical level for output CH： +14dBu（4V RMS） Music gain： 0dB、+3dB、+6dB（三档可选） Microphone sensitivity： 64mV（Out：4V） S/N： ＞90dB Power supplied： 220V/AC/50Hz Size： 483*218.5*47.5mm Net weight ： 3.5KG
